VAN XẢ NƯỚC TỰ ĐỘNG CẢM BIẾN MỨC NƯỚC (CÓ BÁO CHUÔNG BÁO ĐỘNG)
HÃNG SẢN XUẤT: JORC
XUẤT XỨ: HÀ LAN

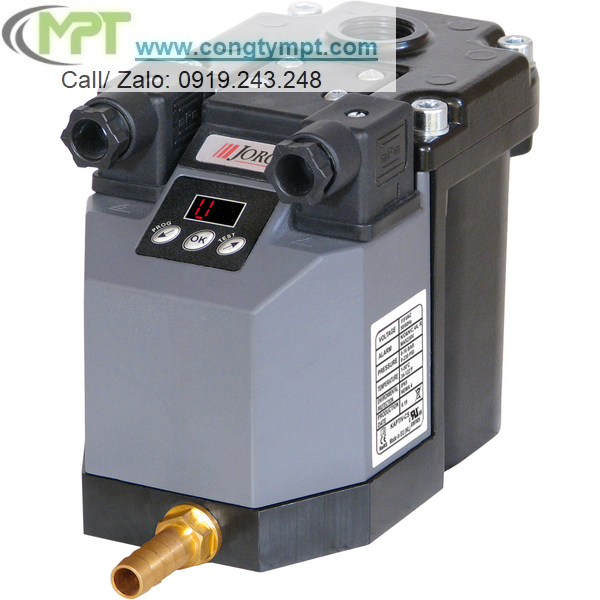

Model: KAPTIV-CS-D-LUX drains with Alarm
Zero air loss condensate drains with digital programming options.
Mã số: 3403 WA (230 VAC, 1/2’’, 0-16 bar, Alarm mode: N/O and N/C)
Mã số: 3423 WA (115 VAC, 1/2’’, 0-16 bar, Alarm mode: N/O and N/C)
Mã số: 3483 WA (24 VDC, 1/2’’, 0-16 bar, Alarm mode: N/O and N/C)
Mã số: 3403 HW (230 VAC, 1/2’’, 0-50 bar, Alarm mode: N/O and N/C)
MÃ SỐ: 3423 HW (115 VAC, 1/2’’, 0-50 BAR, ALARM MODE: N/O AND N/C)
Để biết thêm thông tin chi tiết về sản phẩm: Hình ảnh, kích thước, giá và tồn kho
Vui lòng liên hệ:
Công ty TNHH Máy và Thiết Bị Khí Nén MPT
Hotline/ Zalo: 0919243248
Email: tam.hoang@congtympt.com
Website: www.congtympt.com
SPECIFICATIONS
| MAX. COMPRESSOR CAPACITY | 100 m³/min. (3500 CFM) |
| MAX. DRAINAGE CAPACITY | 665 liters condensate per hour at 16 bar |
| MIN./MAX. SYSTEM PRESSURE | 0 - 16 bar (0 - 230 psi) |
| MIN./MAX. MEDIUM TEMPERATURE | 1 - 50 °C (34 - 122 °F) |
| MIN./MAX. AMBIENT TEMPERATURE | 1 - 50 °C (34 - 122 °F) |
| SUPPLY VOLTAGE OPTIONS | 230VAC / 115VAC / 24VAC / 24VDC |
| ENCLOSURE PROTECTION RATING | IP65 (NEMA4) |
| CONNECTOR TYPE (POWER AND ALARM) | DIN 43650-B |
| INLET CONNECTIONS | 1/2″ BSP or NPT, 3 inlet options |
| INLET HEIGHT | 11 cm (top) and 7.5 & 1.5 cm (side) |
| OUTLET CONNECTION | 1/4″ BSP, with brass hose barb adapter |
| VALVE TYPE | 2/2 way, direct acting |
| VALVE ORIFICE | 4 mm |
| VALVE SEALS | FPM |
| SERVICEABLE VALVE | Yes |
| INTEGRATED MESH STRAINER | Yes |
| HOUSING MATERIAL | Corrosion resistant aluminium, EP coating |
| TEST FEATURE | Yes |
| VISUAL ALARM | Yes, LED indication |
ALARM FEATURE N/O
| Normally Open alarm output contact -potential free relay
(Normally open contacts, closed when in alarm mode. LED on the drain is OFF in normal operation and ON when in alarm mode) |
ALARM FEATURE N/C
| Normally Closed alarm output contact -potential free relay
(Normally closed contacts, open when in alarm mode. LED on the drain is OFF in normal operation and ON when in alarm mode) |
