Description:

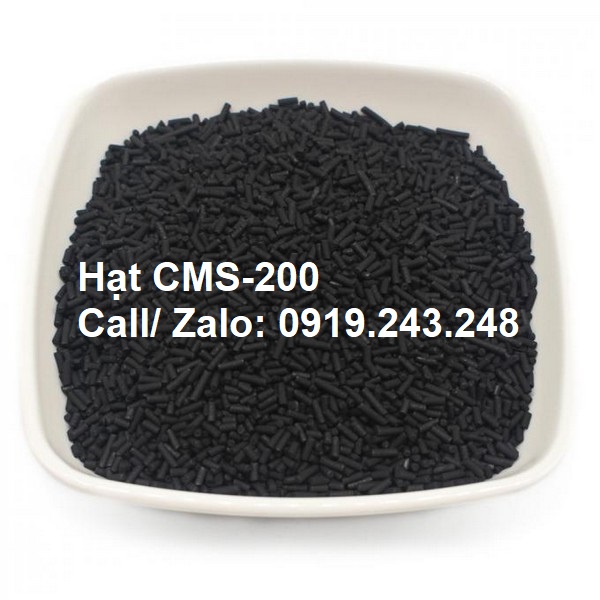

CMS is mainly composed of element carbon.
Applications:
Used to separate N2 and O2 in the air in the PSA system.
Specification:
| Diameter (mm) | 1.2 | 1.3 | 1.5 | 1.8 | 2.0 |
| Crush Strength (N/pcs) | 50-60 | 60-70 | 70-80 | 80-100 | ≥100 |
| Size VS N2 capacity | 240 | 3-5%
loss | 5-10% loss | 10-20% loss | 20-25% loss |
| Type | Adsorbent pressure | N2 purity | N2Capacity | Air / N2 |
| (Mpa) | % | (NM3/h.t) |
| CMS220 | 0.75-0.8 | 95 | 380 | 1.75 |
| 97 | 340 | 2.0 |
| 98 | 260 | 2.25 |
| 98.5 | 255 | 2.29 |
| 99 | 245 | 2.38 |
| 99.5 | 220 | 2.55 |
CMS40 | 0.75-0.8 | 98.5 | 275 | 2.25 |
| 99 | 260 | 2.35 |
| 99.5 | 240 | 2.5 |
| 99.9 | 155 | 3.5 |
| 99.99 | 110 | 4.65 |
| 99.999 | 65 | 6.7 |
| CMS260 | 0.75-0.8 | 99 | 320 | 2.2 |
| 99.5 | 260 | 2.5 |
| 99.9 | 175 | 3.5 |
| 99.99 | 120 | 4.6 |
| 99.999 | 70 | 6.7 |
Attention:
The product as desiccant cannot be exposed in the open air and should be stored in dry condition with air-proof package.
