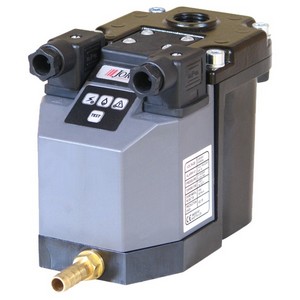

VAN XẢ NƯỚC TỰ ĐỘNG CẢM BIẾN MỰC NƯỚC, HIỆU JORC_HÀ LÀN,
MODEL: KAPTIV-CS
LƯU LƯỢNG: 100 m3/m
ÁP SUẤT: 0 - 16 bar
LỖ XẢ NƯỚC: 4mm
KẾT NỐI REN VÀO: 1/2''
KẾT NỐI REN RA: 1/4''
ĐIỆN ÁP : 230VAC / 115VAC / 24VAC / 24VDC
The KAPTIV-CS (Compact Solution) removes all types of condensate from compressed air systems up to 100 m³/min. without the loss of compressed air.
The KAPTIV-CS is cost effective and offers a rapid pay-back period due to a competitive pricing level, low stocking cost, zero air-loss and energy saving features.
The compact robust industrial housing, 2/2 way direct acting valve with a large orifice, alarm NC or NO and the integrated mesh strainer make the KAPTIV-CS a highly reliable draining solution.
The alarm function can be connected to the WARNER ensuring you never miss maintenance opportunities.
PECIFICATIONS
| MAXIMUM COMPRESSOR CAPACITY | 100 m³/min. |
| PRESSURE RANGE | 0 - 16 bar |
| VALVE TYPE | 2/2 way, direct acting |
| VALVE ORIFICE | 4 mm |
| VALVE SEALS | FPM |
| INLET CONNECTIONS | 1/2″ (BSP or NPT), 3 inlet options |
| INLET HEIGHT | 11 cm (top) and 7.5 & 1.5 cm (side) |
| OUTLET CONNECTION | 1/4″ BSP |
| MEDIUM TEMPERATURE | 1 - 50 °C |
| AMBIENT TEMPERATURE | 1 - 50 °C |
| SUPPLY VOLTAGE OPTIONS | 230VAC / 115VAC / 24VAC / 24VDC |
| POWER AND ALARM CONNECTORS | DIN 43650-B |
| SERVICEABLE VALVE | Yes |
| TEST FEATURE | Yes |
| ENVIRONMENTAL PROTECTION | IP65 (NEMA4) |
| INTEGRATED MESH STRAINER | Yes |
| ALARM CONTACT OPTIONS | Alarm Normally Closed (NC) & Alarm Normally Open (NO) |
| HOUSING MATERIAL | Corrosion resistant aluminium |
FEATURES
Robust aluminium housing with three inlet options, offering you installation flexibility.
Integrated mesh strainer, offering you valve orifice protection.
Extremely easy to disassemble, offering dissasembly simplicity and time saving during routine maintenance.
- Capacitive level sensing technology saves air, energy and money.
- Competitive compact level sensed draining solution.
- Rapid pay-back period due to competitive pricing level and reduced stocking costs.
- The KAPTIV-CS can be connected to the WARNER or to any other alarm device.
- Alarm function (NO or NC) standard incorporated.
- Successful draining of all types of condensate due to large orifice.
- Easy installation and visual display of operating status.
- Direct acting valve assembly, ensuring reliable discharge operation.
